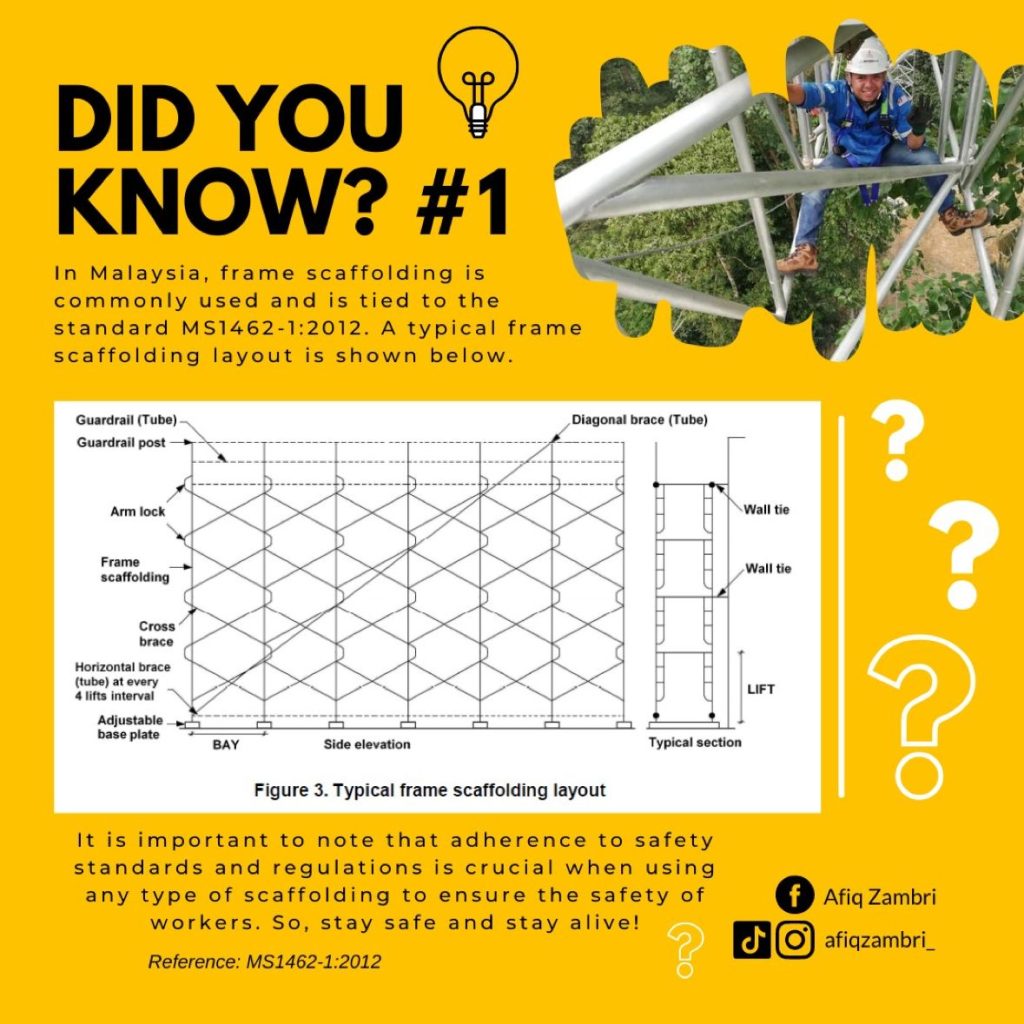

Did you know? About Frame Scaffolding?

Share
Description

with reference to MS1462-1:2012, the scope of the standard only for This Malaysian Standard applies to steel frame working scaffoldings used as temporary structures on which persons work and which provide support for the materials used in building, construction, maintenance, repair and demolition works.
NOTE. This standard does not cover the usage of steel frame scaffoldings as structural shoring.

Material: The tubes shall be manufactured from steel complying with JIS G3444 or equivalent. Other
steels may be used provided the composite frames meet the performance tests requirements.

Material Protection: The steel tubes shall be protected against corrosion by either hot dip galvanising or painting.

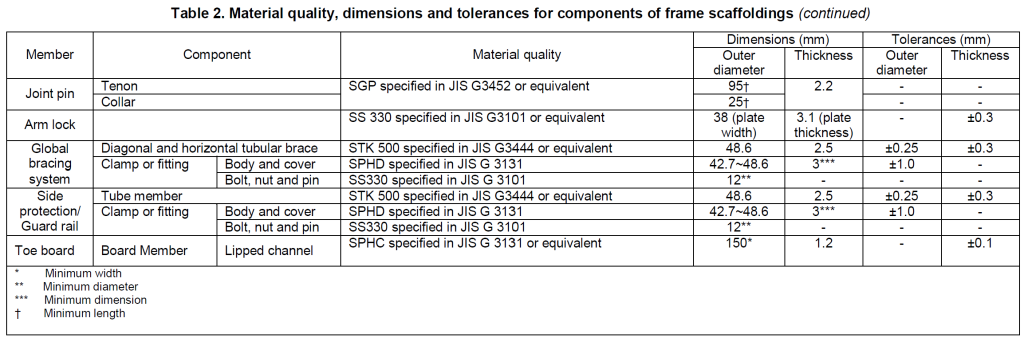

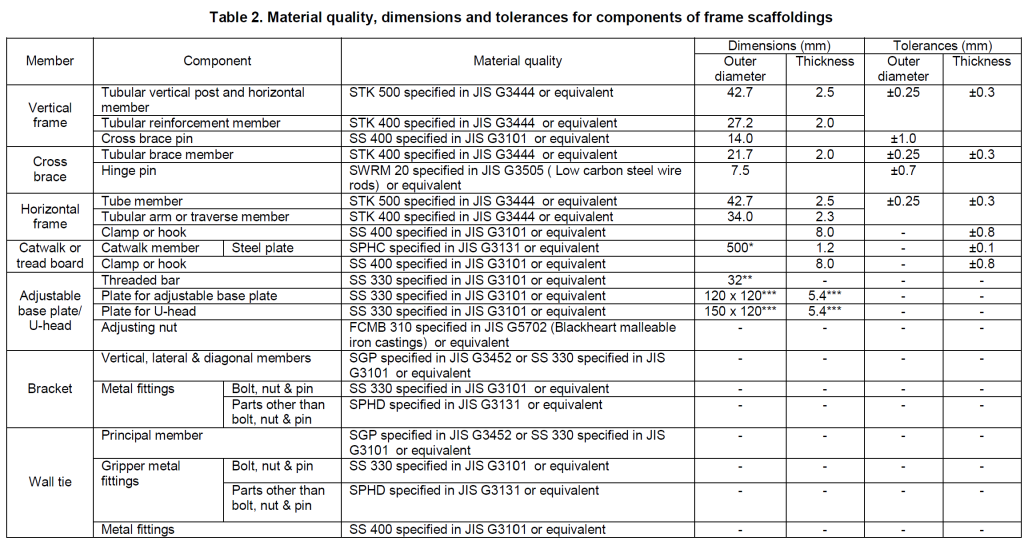

Tolerance: Material quality, dimensions and tolerances for components of frame scaffoldings (Refer table 2)

Continue part 2 soon..
